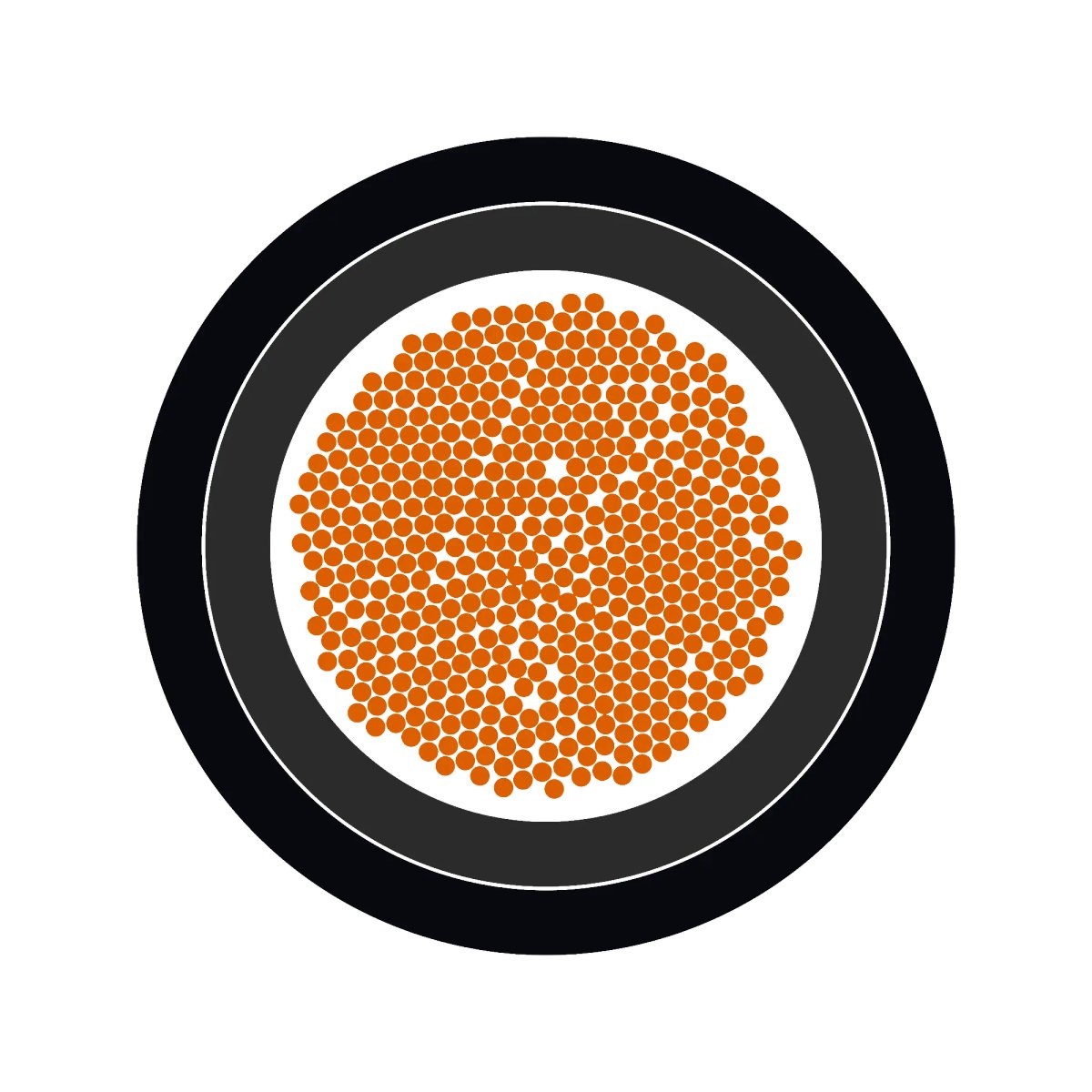

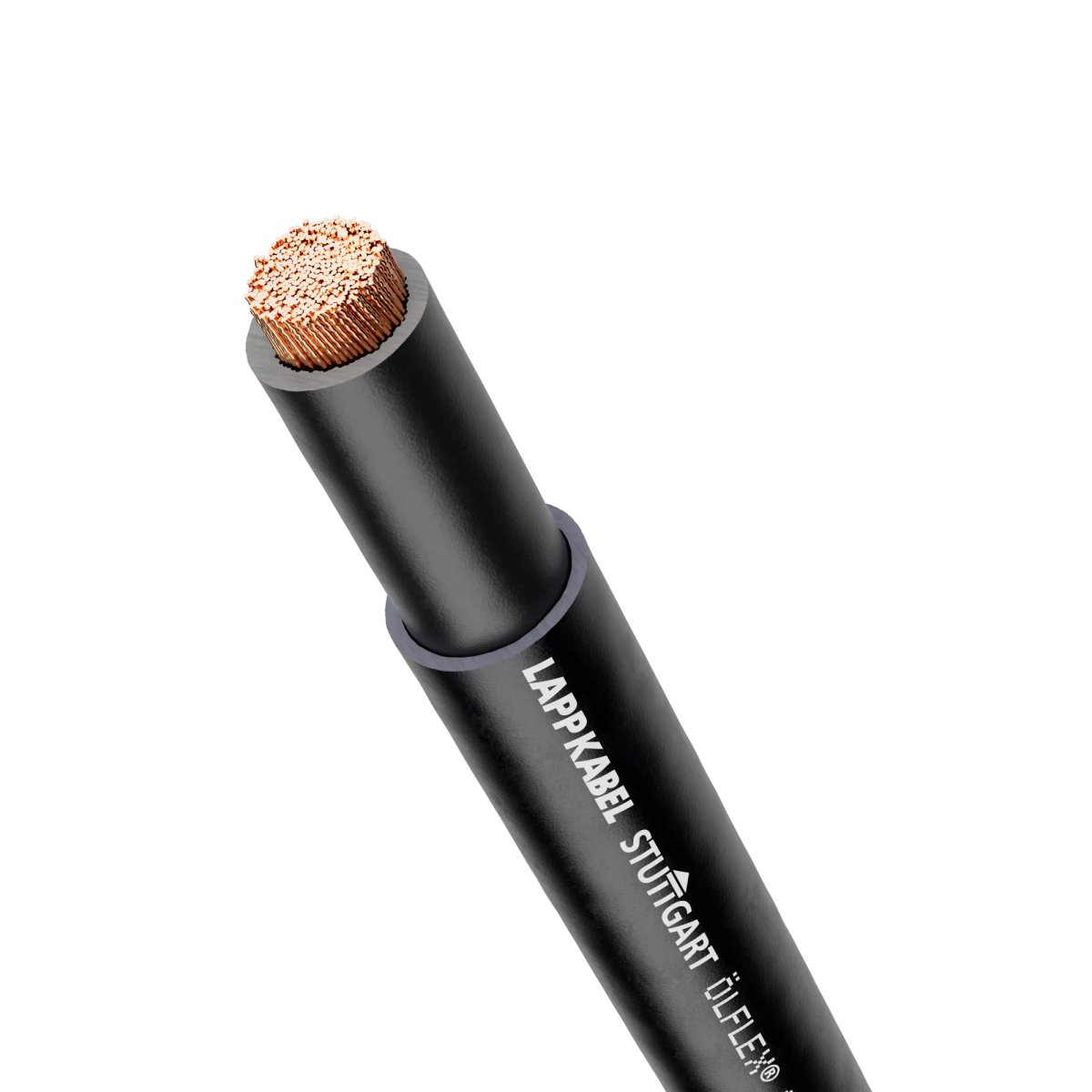

ÖLFLEX® CHAIN 809 SC is a single-core cable designed for flexible, moderately continuous moving use in moving machine parts and in cable chains. It is also suitable for fixed wiring in control cabinets and applications where multi-core cables are difficult to use due to space requirements or minimum bending radii.
Key Benefits
- Basic-Line performance class for moderate travel distances and acceleration
- UL/CSA certification for use in North America; 1000 V operating voltage according to UL (see technical data)
- Multiple certifications reduce part variety and support logistics savings
- Classified fire behaviour according to EU CPR (selection by article number on LAPP website)
Applications
- Energy circuits of servo motors driven by frequency converters
- Cable chains and moving machine parts (moderate continuous movement)
- Fixed installation in control cabinets
- Torsion applications in wind turbines (as specified)
Variant Technical Data (Article No. 1062901)
| Brand | ÖLFLEX® |
|---|---|
| Series | ÖLFLEX® CHAIN 809 SC |
| Product type | Single core cable; cable chain |
| Cable dimension | 1X6 |
| Conductor cross-section | 6 mm² |
| Insulation / sheath base | PVC (Polyvinylchloride) |
| Insulation colour | black |
| Nominal voltage (IEC) | 0.6/1 kV AC |
| Nominal outer diameter | 7.4 mm |
| Weight | 101 kg/km |
Chain & Environmental Performance (common)
- Minimum bending radius: fixed 4×OD; dynamic 10×OD
- Maximum bending cycles: 3,000,000
- Maximum travel distance: 10 m
- Maximum speed: 3 m/s (sliding or unsupported)
- Maximum acceleration: 5 m/s²
- Torsion: ±150°/m (cycles depend on temperature, see datasheet)
- Temperature (IEC): −40°C to +80°C (max. conductor temperature)
- Flame-retardant (IEC 60332-1-2), UV resistant, PWIS-free
Certifications (common)
- CE, EAC
- UL recognised (AWM 10107 according to UL 758), e-file E63634
- cUR recognised (CSA C22.2 No. 210), e-file E63634
Source: Official LAPP product documentation for the ÖLFLEX® CHAIN 809 SC family (including Article No. 1062901). Specifications may change without notice; errors cannot be completely excluded.
