## Technical Data
– Standard: H05VV-F acc. to DIN VDE 0285-525-2-11 / DIN EN 50525-2-11; 05VV-F in alignment with DIN VDE 0285-525-2-11 / DIN EN 50525-2-11
– Temperature range: flexible -5°C to +70°C; fixed -40°C to +70°C
– Nominal voltage: AC U0/U 300/500 V
– Test voltage: 2000 V
– Breakdown voltage: 4000 V
– Minimum bending radius: flexible 7.5× Outer-Ø; fixed 4× Outer-Ø

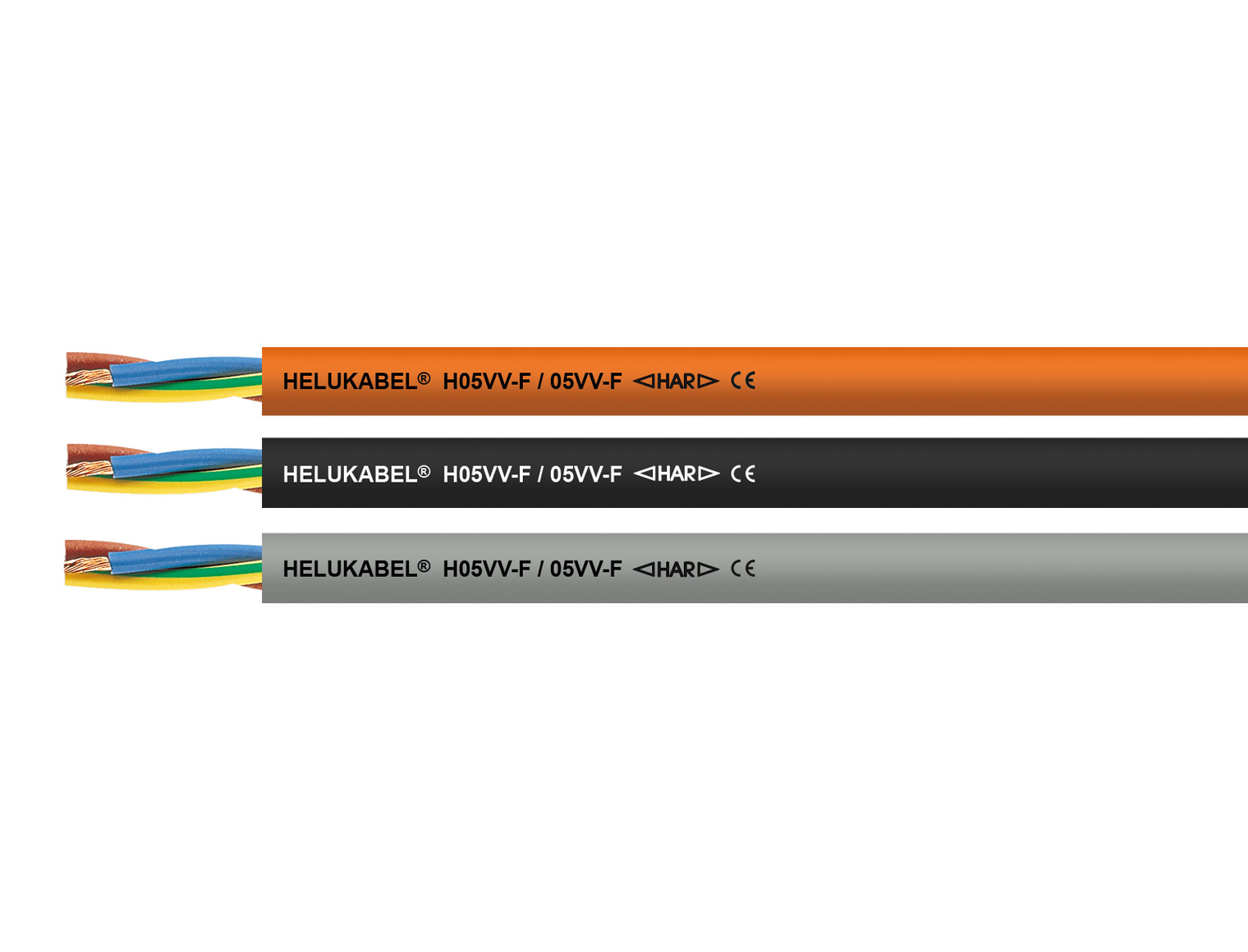

## Cable Structure
– Copper wire bare, finely stranded (DIN VDE 0295 Class 5 / IEC 60228 Class 5)
– Core insulation: PVC (DIN VDE 0207-363-3 / DIN EN 50363-3, compound type TI2)
– Core identification: 2–5 cores colour coded; 7 cores black cores with consecutive labeling in white digits
– Protective conductor: starting with 3 cores (G = with GN-YE; x = without)
– Cores stranded in layers with optimal lay lengths
– Outer sheath: PVC (DIN VDE 0207-363-4-1 / DIN EN 50363-4-1, compound type TM2)
– Sheath colour: see variant
## Properties
– Cadmium-free materials, contain no silicone, and free from substances harmful to the wetting properties of lacquers
## Tests
– Flame-retardant (DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2)
– Certifications/approvals: HAR (H05VV-F), EAC
## Notes
– The conductor is metrically (mm²) constructed; AWG numbers are approximated and for reference only
## Application
For medium mechanical stress for use in households and offices, including damp rooms; including household appliances such as refrigerators, hoovers and washing machines.
## Variant
– Cores: 5
– Cross-section: 0.75 mm²
– AWG (approx.): 19
– Outer Ø (min–max): 7.4 – 9.3 mm
– Cu factor: 36 kg/km
– Weight (approx.): 88 kg/km
– Protective conductor: yes
– Sheath colour: black
—
**Legal notice (HELUKABEL®):** Product images and technical data are sourced from official HELUKABEL® documents. All rights remain with HELUKABEL® GmbH. Specifications may change without notice; despite careful preparation, errors cannot be fully excluded.
